Main Unit DV-12

DV-12 Main Unit Diagram
DV-12 Main Unit Diagram
$1.00
SCREW, 10-32 X1, 1/4", PH, PHIL, ZINC 04-028-00
SCREW, 10-32 X1, 1/4", PH, PHIL, ZINC 04-028-00
$0.80

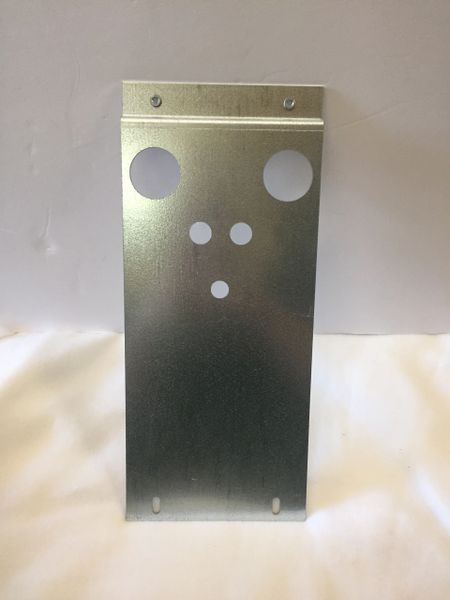

PLATE, RECOVERY TANK 03-025-00
PLATE, RECOVERY TANK 03-025-00
$23.95
WASHER, FLAT, SAE #10, 04-204-00
WASHER, FLAT, SAE #10, 04-204-00
$0.75
GASKET, 2.4 OD X .06, NEO, VAC SEAL 05-211-01
GASKET, 2.4 OD X .06, NEO, VAC SEAL 05-211-01
$2.95
GASKET, 2.12 OD X .3, NEO, RISER TUBE 05-212-00
GASKET, 2.12 OD X .3, NEO, RISER TUBE 05-212-00
$4.95
MANUAL, OWNERS, DV12, 06-376-00
MANUAL, OWNERS, DV12, 06-376-00
$6.95
WIRING KIT DV-12, 33-720-500
WIRING KIT DV-12, 33-720-500
$119.95
ASSY, SHUT OFF, 37-752-00
ASSY, SHUT OFF, 37-752-00
$54.95
ASSY, RISER TUBE 22-795-000
ASSY, RISER TUBE 22-795-000
$64.95
FITTING, PVC, 'T', 1.25, DV12 01-362-00
FITTING, PVC, 'T', 1.25, DV12 01-362-00
$9.95
TANK, RECOVERY, DV12 01-282-00
TANK, RECOVERY, DV12 01-282-00
$225.00
O-RING, 1.421 ID INLET 05-256-00
O-RING, 1.421 ID INLET 05-256-00
$1.00

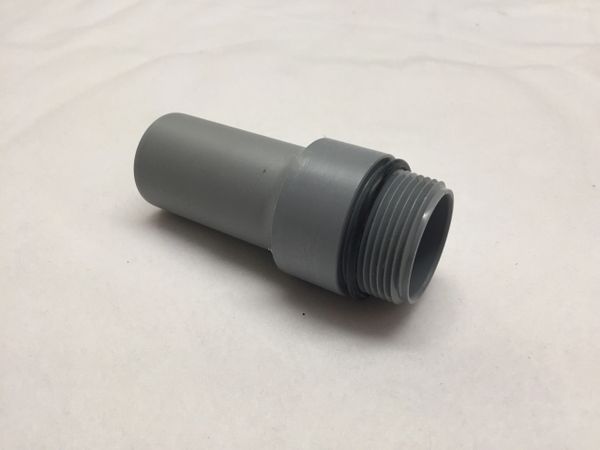

FITTING, PVC, INLET, DV12, 01-360-00
FITTING, PVC, INLET, DV12, 01-360-00
$30.95
VALVE, GATE, DV12 01-600-00
VALVE, GATE, DV12 01-600-00
$35.95
GASKET 1.5 RUBBER, GATE VALVE 05-213-00
GASKET 1.5 RUBBER, GATE VALVE 05-213-00
$1.75

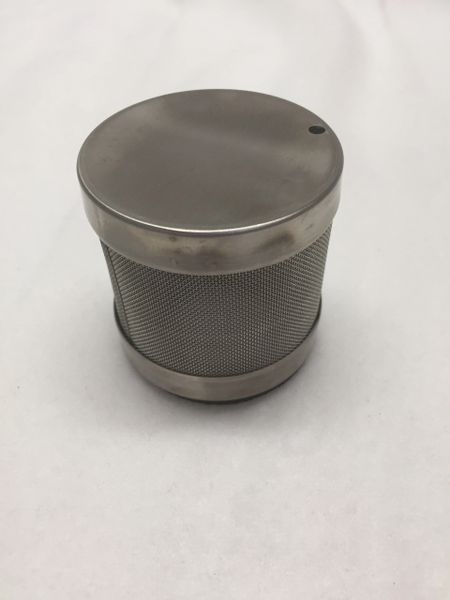

SCREEN VAC MOTOR DV12 03-705-02
SCREEN VAC MOTOR DV12 03-705-02
$3.95
ASSY, VAC MOTOR, 120V, W/SCREEN, DV12 30-022-120
ASSY, VAC MOTOR, 120V, W/SCREEN, DV12 30-022-120
$137.85
SCREW, 1/4-20 X 3, RH, PHIL, SS 04-020-00
SCREW, 1/4-20 X 3, RH, PHIL, SS 04-020-00
$2.50
NUT, 5/16-18, NYLOCK, ZINC 04-310-00
NUT, 5/16-18, NYLOCK, ZINC 04-310-00
$0.75
WASHER, FLAT, .312, SAE, ZINC 04-210-00
WASHER, FLAT, .312, SAE, ZINC 04-210-00
$0.75
ASSY, SOLUTION HOSE, DV12 20-160-000
ASSY, SOLUTION HOSE, DV12 20-160-000
$62.95
VAC HOSE, 2 X 40, WIRE W/2" CUFFS 21-153-001
VAC HOSE, 2 X 40, WIRE W/2" CUFFS 21-153-001
$58.95
CLAMP, WORM GEAR, 2.5" 04-373-00
CLAMP, WORM GEAR, 2.5" 04-373-00
$2.95
